Before Installation |
| • Starts with initial control panel Y-Δ. |
| • Generates 3-6 times the starting current |
| • Starts at FULL SPEED regardless of load variation, leading to high energy consumption |
| • Unable to control power during peak hours. |
| • Irregular load quantity with the use of power factor control capacitors. |
| • Unreasonable increase in contracted power with expansion |
| • Unable to control airflow and water flow |
After Installation |
| • Enables SOFT START |
| • Starts within 100% of the rated current |
| • Reduces PEAK power due to starting current, extending motor life. |
| • Energy saving with load control by inverters |
| • High power control with increased PEAK reduction effect |
| • Easy automatic control of load with power control |
| • 30% reduction in contracted power |
| • Precise control of air and water flow |
Effect |
| •Save 20~50% on monthly electricity bills |
| •30-50% savings after 1 year |
•Reduced contract power and basic charges by reducing apparent power |
| •No use of capacitors for power factor improvement |
| •Noise generation is spectral filtered |
| •Easy to control proportional output of lower part of driving unit |
| • Increased product competitiveness |
| •Increased equipment life |
| •Improved safety |
| Annual electricity bill savings of 20-50%; with a reduction of 30-50% starting from the 2nd year |
| Reduction in apparent power leads to lower contracted power and basic charges |
| Eliminates the need for power factor improvement capacitors |
| Noise is stringently filtered |
| Easy proportional output control on the drive load side |
| Enhanced product competitiveness |
| Increased equipment lifespan |
| Improved safety |
Annual electricity bill savings of 20-50%; with a reduction of 30-50% starting from the second year. | Reduction in apparent power leads to lower contracted power and basic charges | Eliminates the need for power factor improvement capacitors | Noise is stringently filtered |
Easy proportional output control on the drive load side | Enhanced product competitiveness | Increased equipment lifespan | Improved safety |
※ Note: Average savings rate is around 20-50%. The cooling part of the product in the 6-Cycle process shows the highest savings rate.
Category | VVCF | High-Efficiency Inverter <VVVF> | POWER-SAVER |
Applicable Capacity | 220Kw (220V 380V 440V ) | 220Kw (220V 380V 440V) | 220Kw (220V 380V 440V 3300V 6600V) |
Control Target | Variable Voltage Frequency and Constant Control | Variable Voltage and Variable Frequency Control (v/f) Proportional Size Control | Control of magnitude and direction of voltage: control of excitation and torque current |

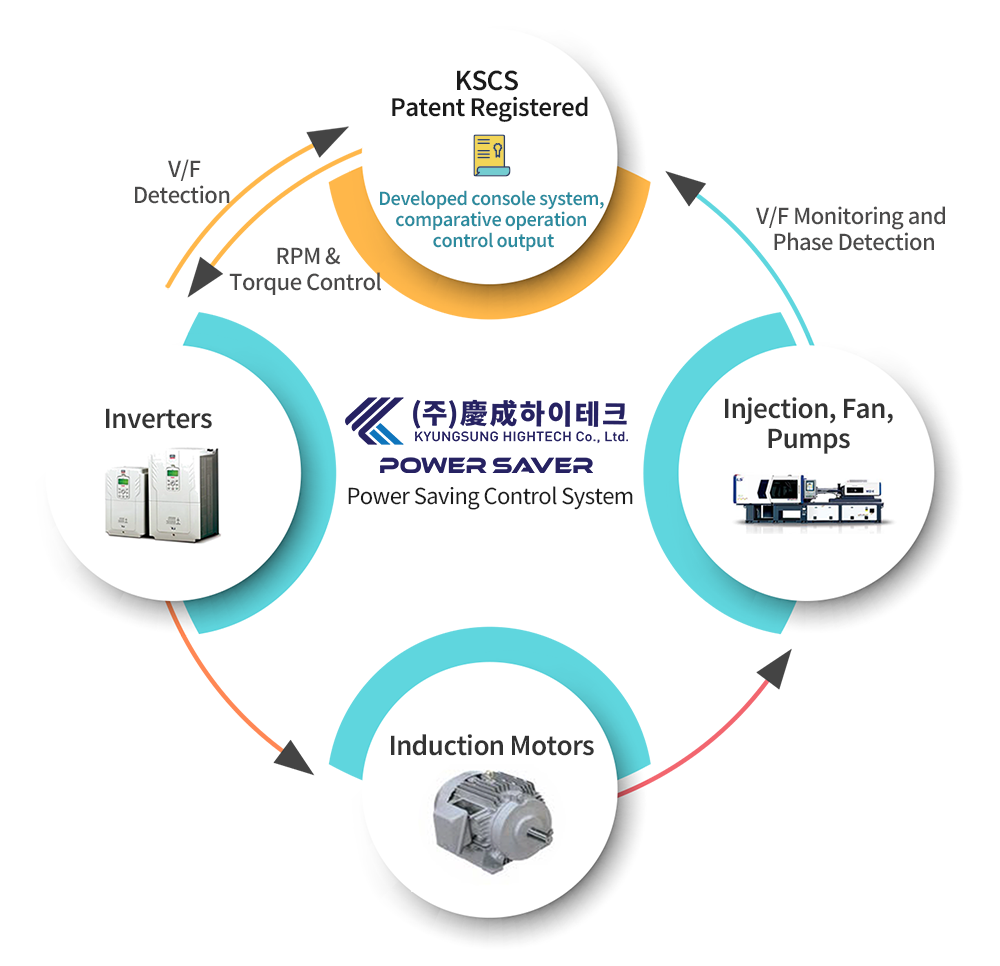

Control Method | Voltage, Current Phase Control (Slip Control) | Inverter Control | Vector Control + Developed KSCS (Patent) |
Control Frequency | Limited (Precision Control Load) | 6~60Hz + 50Hz (Precision Control Load) | |
Acceleration/Deceleration Characteristics | Soft Start Soft Stop (Start & Stop) | Dead Timer Poor Overcurrent Suppression Limitations in Rapid Acceleration/Deceleration | Easy Overcurrent Suppression, No Limitations in Rapid Acceleration/Deceleration, Continuous 4-Phase Operation Possible |
Saving in Hydraulic, Pneumatic Pressure | Proportional to Voltage Squared | Proportional to RPM Squared | Proportional to RPM Squared and Precise Control of Hydraulic, Pneumatic Pressure |
Power Saving | Proportional to RPM (Iron Loss = Constant Dynamic Loss) | Proportional to RPM Cubed | Proportional to RPM Cubed |
Applicable Load | No Load, High Startup Frequency Loads | Quadratic Torque Loads | Precise Control of Quadratic Torque Loads |
Points of Attention | Torque Reduction: Consideration for Startup Torque (Torque Proportional to Voltage Squared) | Precision Control Required for Hydraulic, Pneumatic Pressure Drop; Stall Phenomenon at Low Speeds | Precise Control of Hydraulic, Pneumatic Pressure Enhances Product Quality (Overcomes VVVF Drawbacks) |
Control Range | 1:10 | More than 1:100 | |
Speed and Loss Relationship | Slip Control Increases Loss with Speed Reduction | Simultaneous Control of Frequency, Voltage (v/f) Keeps Loss Constant | Simultaneous Control of Frequency, Voltage (v/f) Keeps Loss Constant |
Harmonics | Prevention Measures Required | Prevention Measures Required | Minimal Occurrence |
Torque Control | Not Possible | Possible | Possible |
Speed Detection | Not Performed | Not Performed | Speed and Position Detection |
